BLACK RACER CERAMIC COATED BEARINGS REQUIRE LUBRICATION

Ordering Part Number Sample: 1/4" Closed Twin Pillow Block
For Self Aligning Bearings add (SA) to Part Number

LPB 4T SA

LM76 Linear Motion Bearings are direct drop-in replacements for linear ball bearings

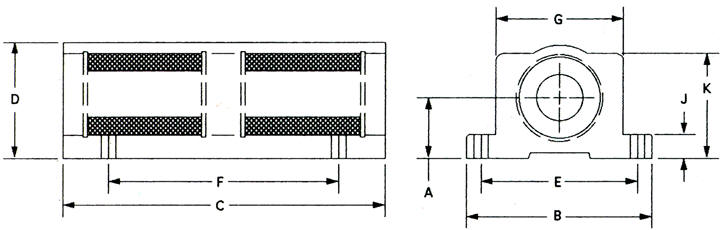

P/N     Working Bore            A    B C D E F G Bolt Hole JL
Min
K
Inches Tol. +/-.002 +/-.010 +/-.010
LPB-4T .2505 +.001 .437 1-5/8 2-1/2 13/16 1.312 2.000 1 #6 5/32 3/16 3/4
LPB-6T .3755 +.001 .500 1-3/4 2-3/4 15/16 1.437 2.250 1-1/8 #6 5/32 3/16 7/8
LPB-8T .5005 +.001 .687 2 3-1/2 1-1/4 1.688 2.500 1-3/8 #6 5/32 1/4 1-1/8
LPB-10T .6255 +.001 .875 2-1/2 4 1-5/8 2.125 3.000 1-3/4 #8 3/16 9/32 1-7/16
LPB12T .7505 +.001 .937 2-3/4 4-1/2 1-3/4 2.375 3.500 1-7/8 #8 3/16 5/16 1-9/16
LPB-16T 1.0008 +.001 1.187 3-1/4 6 2-3/16 2.875 4.500 2-3/8 #10 7/32 3/8 1-15/16
LPB-20T 1.2508 +.001 1.500 4 7/1/2 2-13/16 3.500 5.500 3 #10 7/32 7/16 2-1/2
LPB-24T 1.5008 +.0015 1.750 4-3/4 9 3-1/4 4.125 6.500 3-1/2 1/4 9/32 1/2 2-7/8
LPB-32T 2.0012 +.0015 2.125 6 10 4.063 5.250 8.250 4.500 3/8 13/32 5/8 3.625
