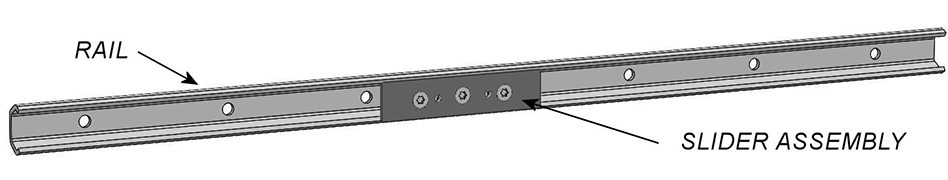

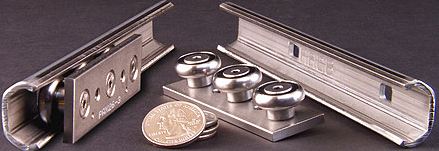

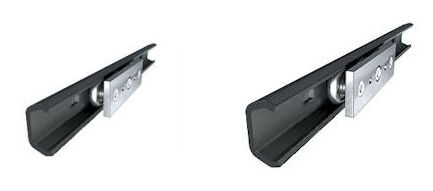

LM76 DEFENDER 1 RAIL ROLLER BLOCK
AND RAIL SYSTEM
 TECHNICAL DATA
    LMNP SERIES

    ( NP = Nitride Plus )

Rails are rolled steel and nitride hardened
Rollers are made from hardened
  52100 bearing steel

Slider is bright zinc plated steel
Screws bright zinc plated steel
Rollers have 2Z seals and are lubricated
  for life with high temp mineral grease
Operating Temp: - 30 to 110

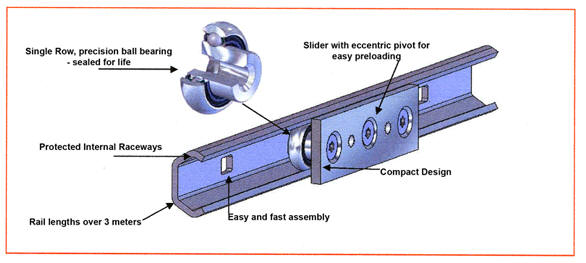

Slider has adjustable eccentric central
   roller for easy pre-load adjustment
   and smooth movement without clearance
TECHNICAL DATA
    LMX SERIES
    ( X = Stainless Steel )

Screws are 304 stainless steel
Slider body is 304 stainless steel
Rollers are hardened 440C stainless steel
Rails are rolled, 304 stainless steel
Rollers have 2RS seals and are lubricated
  for life with mineral oil for food processing
  applications
Operating Temp: - 30 to 110
Slider has adjustable eccentric
  central roller or easy pre-load adjustment
  and smooth movement without clearance
NOTE: Cut ends on the LMNP Nitride Plus rails are exposed. If required, we can coat the ends with our propriety Krylon surface treatment.

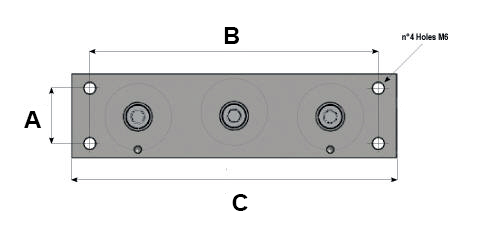

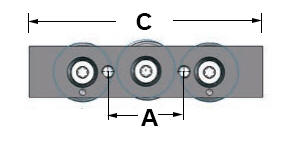

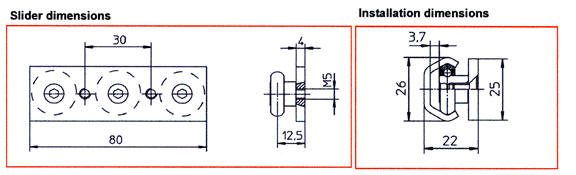

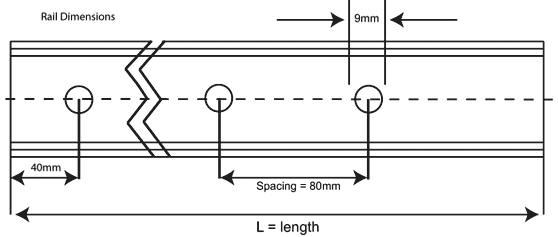

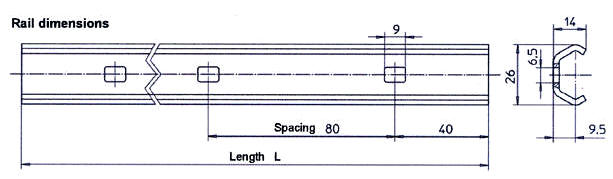

Dimensions in mm


Rail Mounting Fateners M5-ISO 7380

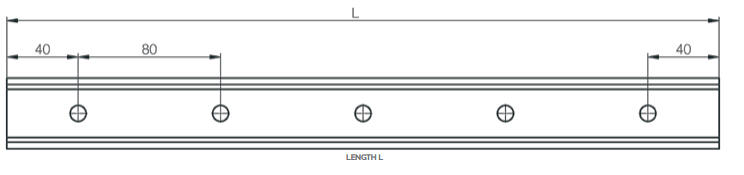

Rail Code Length * (mm)
LMRX 26
300 Series Stainless
1040 1520 2080 3120
LMR1NP Nitride Plus
Hardened Steel with Corrosion Coating
1040 1520 2080 3120

To calculate newtons (N) to pounds: 1 newton (N) of force = 0.22 pounds-force (lbf) in force   To calculate Newton meters (Nm) to foot pounds:
1 newton meter =
0.737562149 foot pound force

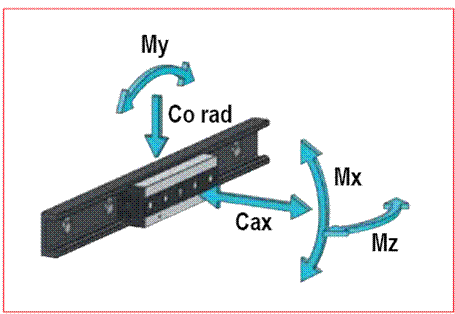

Slider Part Number Co rad
(N)
Co rad
(Lbs.)
Co ax (N) Co ax
(Lbs.)
Weight (g)
LMBX 26-3 Stainless Steel 800 179 400 89 136
LMBZ 26-3 Zinc Plated Steel 800 179 400 89 103
Slider Part Number Mx (Nm) My (Nm) Mz (Nm)
LMBZ 26-3 Stainless Steel 3 9 12
LMBX 26-3 Stainless Steel 3 9 12


Tightening Torque: 7Nm

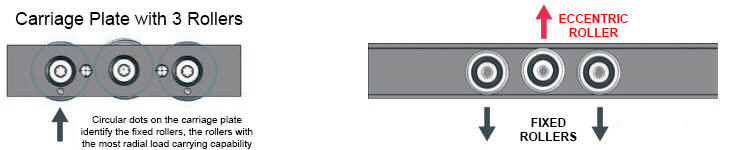

The preload adjustment is accomplished through the slider's center eccentric roller. After inserting the slider into the rail, the preload is set by adjusting the center roller against the opposite raceway using 2 Allen keys. This adjustment must be made before mounting since 1 Allen key must pass through a rail mounting hole into the axel of the center roller. ( see illustration). During adjustment of the eccentric roller, it is necessary to keep the mounting screw ( in the slider body ) a tight until contact with the opposing raceway. After light contact of the eccentric roller, the Allen key behind the rail will be held firm while the mounting screw is tightened. Move the slider along the whole rail to ensure smooth movement without clearance. If the slider is found to be too tight or has some clearance in places, readjust to suit.
Roller Code Type Material
PCX 26 Concentric Stainless
PEX 26 Eccentric Stainless
PCZ 26 Concentric Zinc Plated
PEZ 26 Eccentric Zinc Plated
