LSR 1 & 2 Intermittent Steel Support Rails

Back to Linear Shafting Overview
Intermittent support rails are perfect for applications where continuous support is not required. They are readily available and
offer some cost savings. While the LSR1 is used as intermittent supports, LSR2 can be used the same way, but offers the perfect
support for mounting under a shaft joint.

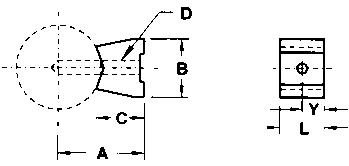

LSR1 Supports
PART NO. SHAFT DIA. A B C BOLT HOLE Y L
LMLSRI 1-08 1/2 .562 .370 .341 6-32 .169 1 2
LMLSRI 1-10 5/8 .687 .450 .412 8-32 .193 1 2
LMLSRI 1-12 3/4 .750 .510 .420 10-32 .221 1-1/2 3
LMLSRI 1-16 1 1.000 .690 .560 1/4-20 .281 1-1/2 3
LMLSRI 1-20 1-1/4 1.187 .780 .626 5/16-18 .343 1-1/2 3
LMLSRI 1-24 1-1/2 1.375 .930 .703 3/8-16 .406 2 4
LMLSRI 1-32 2 1.750 1.180 .845 1/2-13 .531 2 4
LMLSRI 1-48 3 2.750 1.875 1.404 3/4-10 .812 2 4

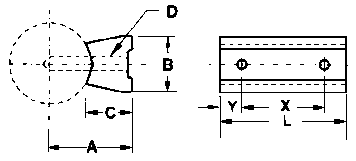

LSR2 Supports
PART NO. SHAFT DIA. A B C BOLT HOLE Y X L
LMLSRI 2-08 1/2 .562 .370 .341 6-32 .169 1 4 6
LMLSRI 2-10 5/8 .687 .450 .412 8-32 .193 1 4 6
LMLSRI 2-12 3/4 .750 .510 .420 10-32 .221 1 6 8
LMLSRI 2-16 1 1.000 .690 .560 1/4-20 .281 1 6 8
LMLSRI 2-20 1-1/4 1.187 .780 .626 5/16-18 .343 1 6 8
LMLSRI 2-24 1-1/2 1.375 .930 .703 3/8-16 .406 1-1/2 8 11
LMLSRI 2-32 2 1.750 1.180 .845 1/2-13 .531 1-1/2 8 11
LMLSRI 2-48 2 2.750 1.875 1.404 3/4-10 .812 1-1/2 8 11
