Low Steel Support Rails

Back to Linear Shafting Overview
For effective, low cost continuous or intermittent support, LM76 steel
low support rails are available in a full range of sizes to accommodate shafts up to
3" diameter. These rails can be supplied with or without mounting holes and can be used
vertically or horizontally to provide optimum rigidity. Available in standard lengths of 48"
+0",-1/8"...which can easily be cut to meet shorter length requirements.
They can also be provided in our standard intermittent lengths.

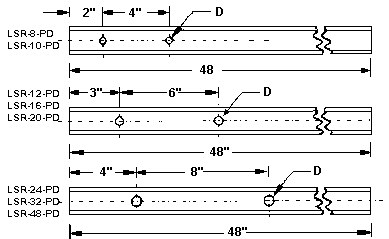

LSR Supports

LMLSR Support Rails

PART NO. SHAFT DIA. A B C BOLT HOLE Y X WT.
PER
48" (LBS)
LMLSR-8 .500 .562 .370 .341         1.32
LMLSR-8-PD .500 .562 .370 .341 6-32 .169 2 4 1.32
LMLSR-10 .687 .687 .450 .412         1.95
LMLSR-10-PD .687 .687 .450 .412 8-32 .193 2 4 1.95
LMLSR-12 .750 .750 .510 .420         2.25
LMLSR-12-PD .750 .750 .510 .420 10-32 .221 3 6 2.25
LMLSR-16 1.000 1.000 .690 .560         4.25
LMLSR-16-PD 1.000 1.000 .690 .560 1/4-20 .281 3 6 4.25
LMLSR-20 1.250 1.187 .780 .626         5.08
LMLSR-20-PD 1.250 1.187 .780 .626 5/16-18 .343 3 6 5.08
LMLSR-24 1.500 1.375 .930 .703         6.72
LMLSR-24-PD 1.500 1.375 .930 .703 3/8-16 .406 4 8 6.72
LMLSR-32 2.000 1.750 1.180 .845         11.00
LMLSR-32-PD 2.000 1.750 1.180 .845 1/2-13 17/32 4 8 11.00
LMLSR-48 3.000 2.750 1.875 1.404         27.92
LMLSR-48-PD 3.000 2.750 1.875 1.404 3/4-10 .812 4 8 27.92


LSR Supports
