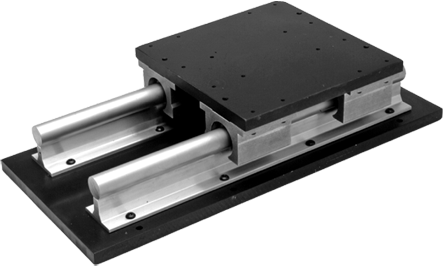

MRPS/BRPS NON-DRIVEN SLIDES

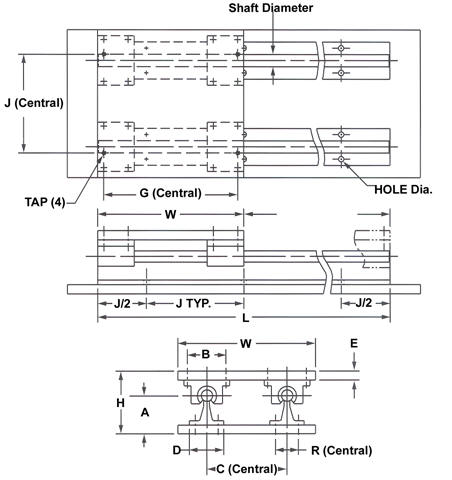

MRP- S = PTFE Self Lubricating Bearings Supported Slide Dimensions  Non-Driven - Inch
MRP- S  = PTFE Self Lubricating Bearings     BRP- S = Linear Ball Bearings
SLIDE SIZE Shaft Dia. W H A B C D E F G J TAP HOLES
M-RPS- 08 .500 6.00 2.562 1.125 2.00 3.500 1.500 .375 .750 5.50 4.00 10-24 .22
M-RPS-10 .625 7.00 2.750 1.125 2.500 4.00 1.650 .375 .750 6.31 4.00 1/4-20 .28
M-RPS-12 .750 8.00 3.438 1.500 2.750 4.500 1.750 .500 1.00 7.12 6.00 1/4-20 .28
M-RPS-16 1.000 9.00 3.938 1.750 3.250 5.500 2.125 .500 1.00 8.31 6.00 1/4-20 .28
M-RPS-20 1.250 11.00 5.125 2.125 4.00 6.500 2.500 .750 1.25 10.00 6.00 5/16-18 .34
M-RPS-24 1.500 13.00 5.750 2.500 4.750 8.00 3.00 .750 1.25 12.00 8.00 5/16-18 .34
M-RPS-32 2.00 18.00 7.375 3.250 6.00 10.00 3.750" 1.00 1.50 15.88 8.00 3/8-16 .41


PART NUMBER EXAMPLE: MRPS-16- 36 - SST
M = PTFE Self Lube Bearings  16 = 1"  Shafting  36 = Overall Supported Shaft Length: 36" Long   SST = 303 Stainless JET Shafting

PART NUMBER EXAMPLE: BRPS-12-24
B = Linear Ball Bearings  12 = 3/4" Shafting   24 = Overall Supported Shaft Length: 24" Long
