SEAL SLIDE Linear Slides™

APPLICATION & LOAD WORKSHEET
              Please Print &  Fax Back to LM76




Patent Pending PTFE Sealing for Screw & Nut

THE LM76 SEAL OF APPROVAL

Journal Bearing and Shaft
Sealing Covers
  LM76 announces NEW Patent Pending Seal Slide Linear Slides™.
  • ALL Major Components 303 Stainless Construction

  • Austenitic Stainless Fasteners

  • FDA/USDA Compliant

  • FDA/USDA Compliant Linear Bearings with PTFE, Self Lube Liners

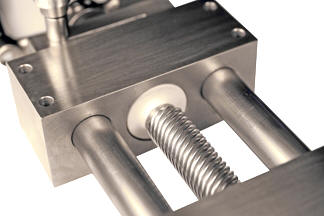

  • Special PTFE Rotary Seals Prevent Material from Entering the Ball Screw/Journal Area

  • Proven for Caustic Washdown

  • Minimized Contamination Collection or Trap Points Due to "PASS THROUGH DESIGN"

  • No Counter-Bore Collection Points

  • Screw Leads from: .062" - 2.400" or 2.5mm - 50mm

  • Special Polymatrix Nut Integral with Carriage

  • Standard Repeatability within ± .002

  • Linear Stroke: up to 136"

  • Speeds up to 50" sec + ( average velocity )

  • Standard Temp Resistance to 300° F

  • Optional Temp Resistance to 600° F

  • High Vacuum Environments OK

  • Stainless Drive Adaption Kits include risers, motor plate and coupling for NEMA 23 or NEMA 34
    or I.E.C. 50, 60, 80

  • Maintenance-Free Self Lubricating System ( speeds past 15" a second please call factory )

  • Shaft Sizes: 3/4" - Specials

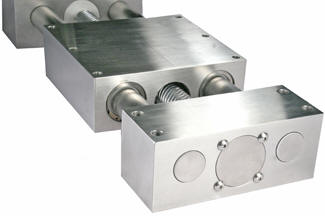

Seal Slide with Washdown
SS Servo - Not supplied by LM76

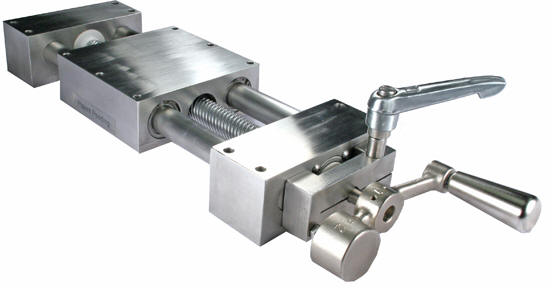

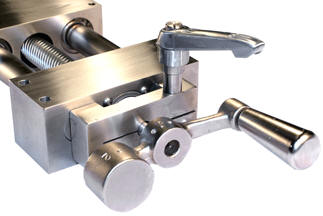

Manual Hand-Crank & Lock

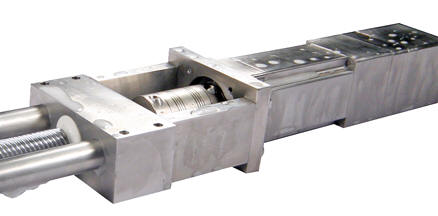

Seal Slide with SS Servo
For more information, call 1-800-513-3163     Fax: 1-413-525-3735
Int'l 413-525- 4166
