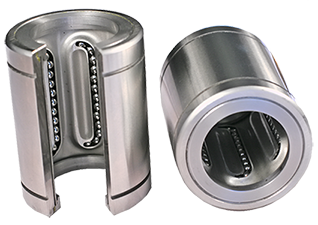

LM76 Stainless (440C hardened to 58RC hardness) Linear Ball Bearings provide low friction, corrosion resistant operation. These bearings can be supplied with a stainless retainer ( higher temp ) and a resin retainer (less noise, less weight and lower price ) Direct drop-in for industry standard inch linear ball bearings.
SS = Stainless
Steel Construction
Blank = Steel Retainer G = Resin
Retainer
UU = Seals on
Both Sides

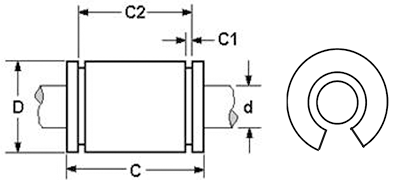

AJ = Adjustable Clearance OP = Open Type
Sample Part Number: SS 16
Stainless - 1" - Steel Retainer - Closed
Sample Part Number: SS 16 G UU OP
Stainless - 1" - Resin Retainer - Seals -

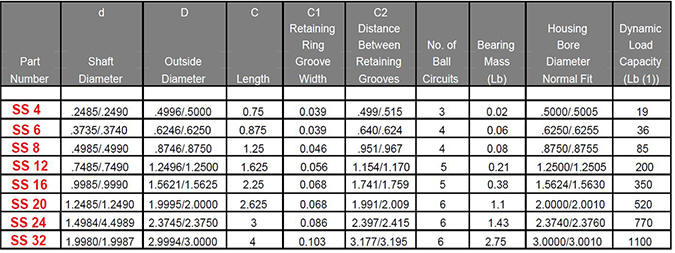

PART NUMBER

CN
Dynamic
Load
Rating

Co
Static
Load
Rating


PART NUMBER


CN
Dynamic
Load
Rating

Co
Static
Load
Rating

SS  2                 1/8"   13 lbs. 17 lbs.
SS  2G
SS  3                 3/16"      20 lbs. 24 lbs.
SS  3G
SS  4                 1/4"        46 lbs. 59 lbs.
SS  4G
SS  4GUU
SS  4UU
SS  6                 3/8"    50 lbs. 70 lbs.
SS  6G
SS  6GUU
SS  6UU
SS  6WU
SS  8                 1/2"       114 lbs. 176 lbs.
SS  8G
SS  8G-AJ
SS  8GUU-AJ
SS  8UU
SS  8UU-OP
SS 10                5/8"       174 lbs. 265 lbs.
SS 10G
SS 10G-AJ
SS 10GUU
SS 10GUU-AJ
SS 10-OP
SS 10UU
SS 10UU-OP
SS 12                 3/4"        193 lbs. 308 lbs.
SS 12G
SS 12GUU
SS 12GUU-AJ
SS 12GUU-OP
SS 12UU
SS 12UU-OP
SS 16                   1"
SS 16G
SS 16G-AJ
SS 16GUU
SS 16GUU-OP
SS 16UU
SS 16UU-OP
SS 20                   1-1/4"
SS 20G
SS 20GUU-AJ
SS 20GUU-OP
SS 20-OP
SS 20UU
SS 20UU-OP
SS 24                  1- 1/2"
SS 24G
SS 24G-AJ
SS 24GUU
SS 24GUU-AJ
SS 24GUU-OP
SS 24-OP
SS 24UU
SS 24UU-OP
SS 32                      2"
SS 32-AJ
SS 32G
SS 32GUU
SS 32GUU-OP
SS 32UU
SS 32UU-OP
193 lbs. 308 lbs.

220 lbs. 353 lbs.






353 lbs. 616 lbs.






490 lbs. 904 lbs.








859 lbs. 1786 lbs.







Quick Look PDF
Catalog Page


SolidWorks Files Upon Request
