Inch Fully Supported Aluminum Shafting

Back to Linear Shafting Overview



Base Material: T6061 Aluminum
Coating: Proprietary Ceramic
Construction: 1 Piece Extrusion

Part
Number

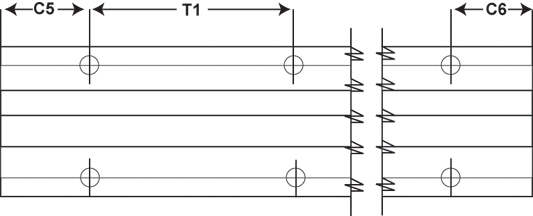

D
- .007
B H
.008
V d1 d2 ( ) E F
T1
Bore
Spacing

C5
Min
C6
Max
Max
Length
Weight
(lbs/ft)

LMSC-08

.500 1.50 1.125 .190 .169 .217 30 1.000 .200 4.00 1 2.95 144 .6

LMSC-12

.750 1.75 1.500 .252 .220 .276 30 1.250 .250 6.00 1 3.95 144 1.2

LMSC-16

1.000 2.126 1.750 .252 .280 .335 30 1.500 .250 6.00 1 3.95 144 1.5

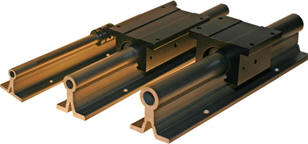

LM76 introduces a line of fully supported, ceramic coated aluminum shafting. This easy-to-use shafting is
lightweight, washdown resistant and extremely competitive. Sizes available: 1/2"  -  3/4"  - 1" diameters.
Each size has an ID core which allows for system cooling, wire, cable/hose storage while coming in at a fighting
weight that is less than the competition.  Extruded lengths to 144" and cut-to-length sizes. These are
designed to be work with our LM76 Self Lubricating and
FDA/USDA linear bearings.

Compliant Linear Motion Bearings.
http://www.lm76.com/prod02.htm Minuteman Self Lubricating Linear Bearings
http://www.lm76.com/new_page_26.htm FDA Composite Linear Bearings
