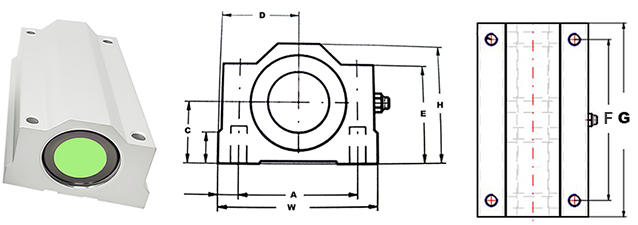

METRIC SELF-LUBRICATING TWIN, CLOSED PILLOW BLOCK

Minuteman Self Lubricating Linear Bearings are Self lubricating and because our PTFE Composite
has no abrasive fillers, Minuteman can run on RC60, soft 300 series stainless and aluminum.
Max PSI PV Temp Max SFM Friction
5000 40,000 -400/+385F 400 .09 -.10

Ordering Part Number Sample: 12mm Closed Bearing Pillow Block
For Self Aligning Bearing add (SA) to the Part Number

MPB 12TSL SA

LM76 Linear Motion Bearings are direct drop-in replacements for Industry European Standard Metric Linear


Twin Closed Self-Lubricating Pillow Block Assemblies

Part Number Shaft
Dia.
 Shaft
Class M
(h6)		 H W

G

A

B

C

D

E

 F H
Bolt		 Max Static
Load
lbs.
MPB12TSL  12 .4724/.4720 30 44 77 33 5.5 15 22 24.5 64 4 x M5 5952
MPB16TSL 16 .6299/.6295 38.5 50 89 36 7 19 25 32.5 79 4 x M5 8928
MPB20TSL 20 .7874/.7869 41 54 100 40 7 21 27 35 90 4 x M6 13950
MPB25TSL 25 .9843/.9838 51.5 76 136 54 11 26 38 42 119 4 x M8 22566
MPB30TSL 30 1.811/1.1806 59.5 78 154 58 10 30 39 49 132 4 x M8 31620
MPB40TSL 40 1.5748/1.5743 78 102 180 80 11 40 51 62 150 4 x M10 49600
MPB50TSL 50 1.9685/1.9679 102 122 230 100 11 52 61 80 200 4 x M10 77500
