METRIC SELF-LUBRICATING TWIN, OPEN PILLOW BLOCK

Minuteman Self Lubricating Linear Bearings are Self lubricating and because our PTFE Composite
has no abrasive fillers, Minuteman can run on RC60, soft 300 series stainless and aluminum.
Max PSI PV Temp Max SFM Friction
5000 40,000 -400/+385F 400 .09 -.10

Ordering Part Number Sample: 12mm OPEN Bearing Pillow Block
For Self Aligning Bearing add (SA) to the Part Number

MXPB 12TSL SA

LM76 Linear Motion Bearings are direct drop-in replacements for Industry European Standard Metric Linear

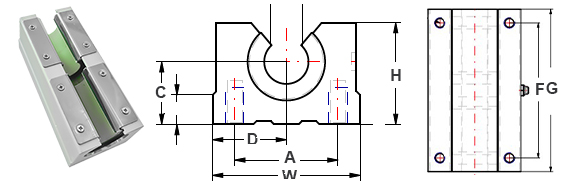

Twin Open  Self-Lubricating Pillow Block Assemblies

Part Number Shaft
Dia.
 Shaft
Class M
(h6)		 H W

G

A

B

C

D

E

 F
Bolt
Size		 Max Static
Load
lbs.
MXPB12TSL  12 .4724/.4720 27.6 44 77 33 5.5 15 22 24.5 64 4 x M5 5952
MXPB16TSL 16 .6299/.6295 33 50 89 36 7 19 25 32.5 79 4 x M5 8928
MXPB20TSL 20 .7874/.7869 39 54 100 40 7 21 27 35 90 4 x M6 13950
MXPB25TSL 25 .9843/.9838 47 76 136 54 11 26 38 42 119 4 x M8 22566
MXPB30TSL 30 1.811/1.1806 56 78 154 58 10 30 39 49 132 4 x M8 31620
MXPB40TSL 40 1.5748/1.5743 72 102 180 80 11 40 51 62 150 4 x M10 49600
MXPB50TSL 50 1.9685/1.9679 92 122 230 100 11 52 61 80 200 4 x M10 77500
