MAX PV Max PSI Max Velocity Coefficient of Friction Operating Temp
4000 1200 50 SFM .14 - 460 to + 180 F

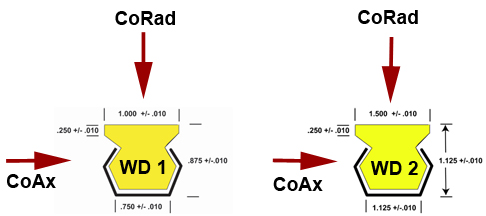

CoRad  Lbs.

CoAx Lbs.

WD 1

150

75

WD2

300

150

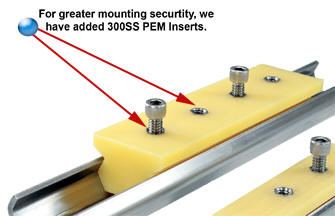

Water Dog Sliders are UHMW blocks operating in 303 Stainless Rails. Although water is a poor lubricant, it makes Water Dogs very slick. Water Dog Sliders are FDA Compliant, do not absorb liquids ( they do not grow ) and they have great abrasion resistance. Water Dogs are by no means precision linear slides. They are simple sliders for water applications where moderate loads and speeds are present.

LM76 provides stainless steel mounting screws for both rail a and carriage block.

For more information, call Mike Quinn 1-800-513-3163

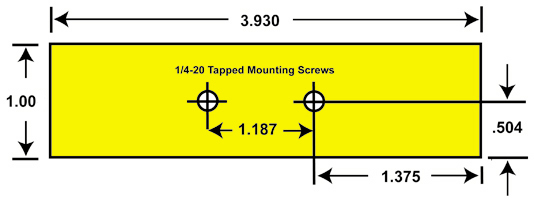

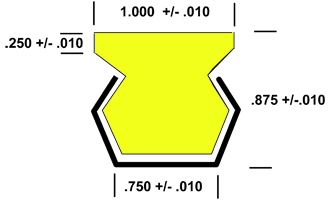

WD1

WD1

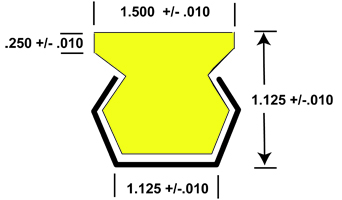

WD2

WD2
