European Metric Open and Closed Minuteman
Self Lube Linear Bearings™

 For Self Aligning Bearings use the suffix SA
Example:

L 5 SL SA


LM76 Linear Motion Bearings are direct drop-in replacements for linear ball bearings

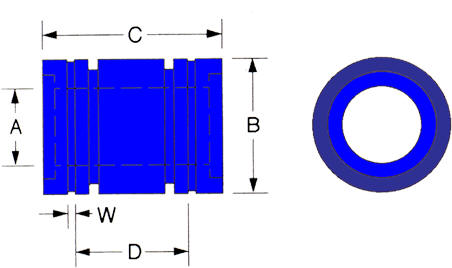

Part Number
CLOSED

Bearing
Size
ID

Max Shaft Dia.
h6 or h7
A

ID Bore
Tolerance
  - .000
+

Outside
Diameter
h7
Tolerance
B

Bearing
Length
h14
Tolerance

C

Retaining Ring
D

Housing Bore Diameter
h7
L5SL    5mm 5mm

0,038-0,065

12

22

 D=12  W=1,1 12
L8SL 8mm 8mm 0,038-0,065

16

25

 D=14 W=1,1 16
L12SL 12mm 12mm 0,038-0,065

22

32

 D=20 W=1,3 22
L16SL 16mm 16mm 0,038-0,065 26

36

 D=22 W=1,6 26
L20SL 20mm 20mm 0,047-0,089 32

45

 D=28 W=1,6 32
L25SL 25mm 25mm 0,047-0,089 40 58 D=40 W=1,85 40
L30SL 30mm 30mm 0,047-0,089 47 68 D=48 W=1,85 47
L40SL 40mm 40mm 0,049-0,089 62 80 D=56 W=2,15 62
L50SL 50mm 50mm 0,049-0,089 75 100 D=72 W=2,65 75
L60SL 60mm 60mm 0,049-0,089 90

125

 D=95 W=3,2 90
L80SL 80mm 80mm 0,122-0,173 120

165

 D=125 W=4,2 120



For Self Aligning Bearings use the suffix SA    Example:

LX 5 SL SA

Part Number
 OPEN

Bearing
Size
ID

Max Shaft Dia.
h6 or h7

ID Bore
Tolerance
  - .000
+

Outside
Diameter
h7
Tolerance

Bearing
Length
h14
Tolerance

Retaining Ring

Housing Bore Diameter
h7

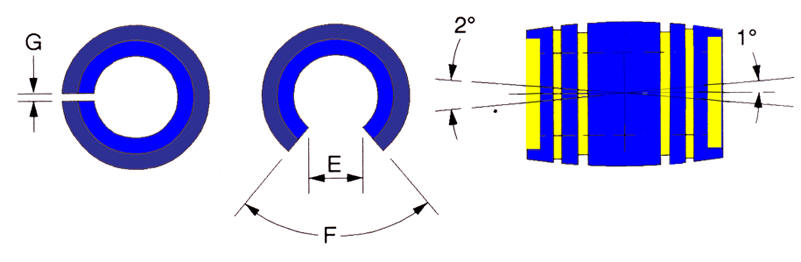

 Open (LX) Slot
Width		 Open (LX)
Slot
Angle		 ADJ (LA)
Slot
G
LX5SL    5mm 5mm

0,038-0,065

12

22

 D=12  W=1,1 12 N/A N/A 2
LX8SL 8mm 8mm 0,038-0,065

16

25

 D=14 W=1,1 16 N/A N/A 2
LX12SL 12mm 12mm 0,038-0,065

22

32

 D=20 W=1,3 22 7,6 78 2,5
LX16SL 16mm 16mm 0,038-0,065 26

36

 D=22 W=1,6 26 10,8 78 3
LX20SL 20mm 20mm 0,047-0,089 32

45

 D=28 W=1,6 32 10,8 60 3,5
LX25SL 25mm 25mm 0,047-0,089 40 58 D=40 W=1,85 40 13,2 60 4,5
LX30SL 30mm 30mm 0,047-0,089 47 68 D=48 W=1,85 47 14,2 50 5
LX40SL 40mm 40mm 0,049-0,089 62 80 D=56 W=2,15 62 18,7 50 7
LX50SL 50mm 50mm 0,049-0,089 75 100 D=72 W=2,65 75 23,6 50 8
LX60SL 60mm 60mm 0,049-0,089 90

125

 D=95 W=3,2 90 29,6 54 10
LX80SL 80mm 80mm 0,122-0,173 120

165

 D=125 W=4,2 120 38,4 54 14
