Minuteman Self Lubricating Bearings

The LM76 Minuteman Self Lubricating Linear bearings, pillow blocks and flange blocks are direct drop-in replacements for linear ball bearings. Minuteman bearings are self
lubricating and because the PTFE Composite has no abrasive fillers, it can run on RC60, soft 300 series stainless and aluminum.

Open and Closed Bearings

Nominal bearing sizes ranging from 1/4" up to 4". Open and closed styles with self aligning feature available (SA).

   minuteman open and closed linear bearings

Inch Closed/Single Pillow Blocks. Nominal bearing sizes ranging from 1/4" up to 2". Closed styles with self aligning feature available (SA).

   inch closed single pillow block

Inch Open/Single Pillow Blocks Nominal bearing sizes ranging from 1/4" up to 2". Open styles with self aligning feature available (SA).

   inch open single pillow block

Inch Closed/Twin Pillow Blocks Nominal bearing sizes ranging from 1/4" up to 2". Closed styles with
self aligning feature available (SA).

   inch closed twin pillow block

Inch Open/Twin Pillow Blocks. Nominal bearing sizes ranging from 1/4" up to 2". Open styles with self aligning feature available (SA).

   inch open twin pillow block

Flange Blocks

Nominal bearing sizes ranging from 3/8" up to 1-1/4". Self aligning feature available (SA).

   flanged blocks

Self Lube TWM Bearings

Nominal metric bearing sizes ranging from 6mm up to 50mm. Also available with a white ptfe FDA/USGA compliant liner and a ceramic coated shell.

   self lube twm bearings

ALI & ALM SERIES

ALI (Inch) and ALM (Metric) linear/rotary, self lubricating bearings offer a thin wall T6061 aluminum shell with
a bonded Self Lubricating PTFE liner. Nominal inch sizes from 1/4" up to 3" and nomial metric sizes ranging from 8mm up to 20mm.

   alm series

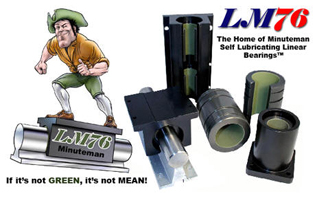

LM76 Minuteman Linear Bearings

Minuteman Linear Bearings thrive in applications where the following situations are present:
• Simultaneous linear, oscillating and rotary motion in 1 bearing
• Contamination - glass, metal shavings, abrasive dust
• High Loads are Present - 10x's more than linear ball bearings
• Water, Chemical Washdown/Submersion
• Shock & Vibration - Dampens Vibration to Shaft & System
• Smooth, Quiet Linear Motion is Required - Medical/Office
• Linear & Rotary Motion Together are Required
• Shaft Friendly Linear Motion is Required - will not groove shafting
• Lower Pricing than Comparable Ball Bushings
• Minuteman Linear Motion Bearings offer the latest in PTFE Composite technology
