Low Friction Sliders	FDA - USDA - 3A Dairy - Outdoor  - Caustic Washdown Compliant - Resists Edge Loading

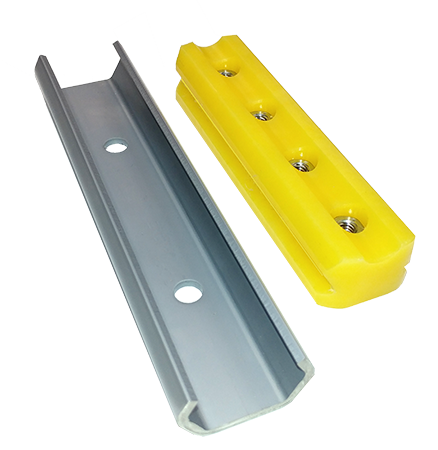

WD1 Slider Block & Rail A B C D E 1.02 1.00 1.00 .750 .255 Operating Temp:  - 400 / +180F
WD2 Slider Block & Rail A B C D E 1.55 1.50 1.125 1.125 .354 Operating Temp:  - 400 / +180F
WD2.5 Slider Block & Rail A B C D E 1.55 1.50 1.125 1.125 .354 Operating Temp:  - 400 / +180F
SIZE Directional Loading   CO rad Coax Mx ft·lbf My ft·lbf Mz ft·lbf WD1 179 89 2.2 6.6 8.8 WD2 258 178 6.6 17 23 WD2.5 129 89 3.3 9 11
Mounting hole pitch for both the WDR1 and WDR2 Rails x=80mm	Cut-to-size rails: the first mounting hole in from each end will be evenly spaced Y=2			E Rail Mounting Screw Type Standard ISO 7380 Screws WD1 M5 Button Head WD2 & 2.5 M8 Button Head
RAIL OPTION 1   300 SS P/N Example: WD1R x Length		Rail Option 2   300 Stainless with Corro-Slick- Coating P/N Example: WD2RCSS x Length
PDF CATALOG Mobile Site: www.LM76LinearBearingSolutions.com		If you view Corro-Slick-Shield's surface through a microscope you will note the surface is populated by small, extremely hard spheres. The spheres change the WD Slider and Rail interface from line-to-line contact to line-to-point contact. This inhibits "Sticktion" and lowers friction associated with sliding systems - producing a meaningful reduction in the dynamic coefficient of friction. Another quality of the spheres is they realign under rail deflection, the coating does not crack or suffer micro-fractures. Corro-Slick-Shield increases rail hardness, corrosion resistance, lowers friction and is FDA/USDA/3 A Dairy compliant.
