Whisper Linear™

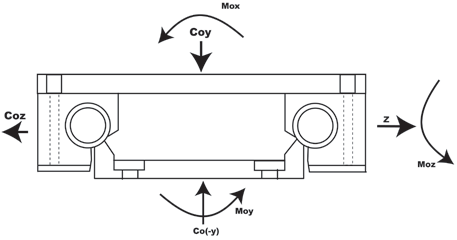

Load Capacity For
WSP 3 Carriage |
Coy
(lbs.) |
Coz
(lbs.) |
Mox
lbs./ft. |
Moy
lbs./ft. |
Moz
lbs./ft. |
|
2877 |
2877 |
387 |
494 |
494 |
Applications:
- Medical Equipment
- Pharmaceutical Systems
-
Washdown Systems
- Food Process Equipment
- Chemistry/Bio Systems
- Lab Equipment
-
Camera Sliders
|
- Wood/Flooring Equipment
- Carpet Machinery
- Welding Systems
- Tufting Systems
- Fabric Systems
- Outdoor Applications
|
|
For
Do-it-Yourself ( DIY's) Camera Slider
folks, LM76 does not supply finished
camera sliders. We only supply the
carriage block with hand lock and rail.
There are no exceptions. |
|
|
|
|
How to Order By Phone -
1-800-513-3163
|
Ordering
P/N's |
Description |
|
WSP3 - CB |
WSP 3 4 Self Lube Pillow Block Carriage
|
|
WSP3 - CBHL |
WSP 3 4 Self Lube Pillow Block Carriage with
Hand Lock |
|
WSP3 - R -? ( ? = length ) |
WSP 3 Ceramic Coated Aluminum Twin Shaft System |
 |
Whisper Linear™
Carriage Blocks are available with
hand locks for easy positioning.
Use P/N WSP3-CBHL |
Material:

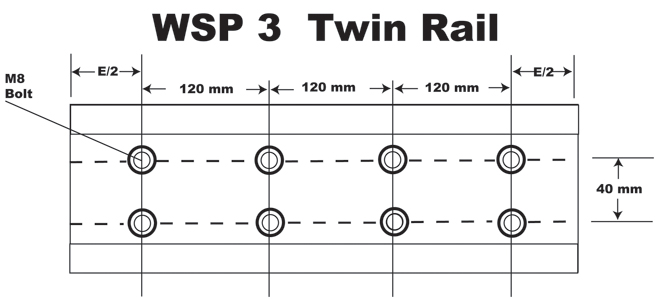

WSP 3 Twin Rail: Ceramic Coated Aluminum
WSP 3 Carriage Block: Clear Anodized Aluminum
- featuring 4, high load, self-lubricating sleeve
bearing pillow blocks
Fasteners: Zinc coated steel. If you have a
washdown application where stainless fasteners are
required, please
call factory for assistance: 1-800-513-3163 |
 |
 |
 |
Some things
you might want to consider before
you select Whisper Linear
Slides for your application -
Engineering
Link |
|
|
|
SolidWorks Files
Upon Request
Please provide your contact information and the
bearing(s) models you require. |
 |
|
