BLACK RACER
Ceramic Coated Linear Bearings require constant lubrication. High
system speeds or rapid oscillation applications may perform
better with SAE 30 weight oil. Moderate to slow speeds
typically use light greases such as
lithium stearates. The only
lubricants not compatible with Ceramic Coated Bearings are
those that are silicon based. Silicon based lubricants
become gummy and can lead to bearing seizure.
|
Black Racer Ceramic
Coated Linear Bearings Excel in applications
that present: |
-
High acceleration and blazing system speeds - Over 120 g's
successful operation
-
Simultaneous linear, oscillating and
rotary motion in 1 bearing
-
Contamination
- glass, metal shavings, abrasive dust
-
High Loads are Present
- 10x's more than linear ball bearings
-
Water, Chemical Washdown/Submersion
-
Shock & Vibration
- Dampens Vibration to Shaft & System
-
Smooth, Quiet Linear Motion is Required
- Medical/Office
-
Linear & Rotary Motion Together are Required
-
Shaft Friendly Linear Motion is Required
- will not groove shafting
-
FDA Compliant when
used with a FDA Compliant Grease
|
European Metric Open and Closed Black
Racer Linear Bearings
For Self Aligning
Bearings use the suffix SA Example:
Part Number CLOSED |
Bearing Size ID |
Max Shaft Dia. h6 or h7 |
ID Bore Tolerance - .000 + |
Outside Diameter h7 Tolerance |
Bearing Length h14 Tolerance |
Retaining Ring |
Housing Bore Diameter h7 |
L5 |
5mm |
5mm |
0,038-0,065 |
12 |
22 |
D=12 W=1,1 |
12 |
L8 |
8mm |
8mm |
0,038-0,065 |
16 |
25 |
D=14 W=1,1 |
16 |
L12 |
12mm |
12mm |
0,038-0,065 |
22 |
32 |
D=20 W=1,3 |
22 |
L16 |
16mm |
16mm |
0,038-0,065 |
26 |
36 |
D=22 W=1,6 |
26 |
L20 |
20mm |
20mm |
0,047-0,089 |
32 |
45 |
D=28 W=1,6 |
32 |
L25 |
25mm |
25mm |
0,047-0,089 |
40 |
58 |
D=40 W=1,85 |
40 |
L30 |
30mm |
30mm |
0,047-0,089 |
47 |
68 |
D=48 W=1,85 |
47 |
L40 |
40mm |
40mm |
0,049-0,089 |
62 |
80 |
D=56 W=2,15 |
62 |
L50 |
50mm |
50mm |
0,049-0,089 |
75 |
100 |
D=72 W=2,65 |
75 |
L60 |
60mm |
60mm |
0,049-0,089 |
90 |
125 |
D=95 W=3,2 |
90 |
L80 |
80mm |
80mm |
0,122-0,173 |
120 |
165 |
D=125 W=4,2 |
120 |
For Self Aligning
Bearings use the suffix SA Example:
Part Number
OPEN |
Bearing Size ID |
Max Shaft Dia. h6 or h7 |
ID Bore Tolerance - .000 + |
Outside Diameter h7 Tolerance |
Bearing Length h14 Tolerance |
Retaining Ring |
Housing Bore Diameter h7 |

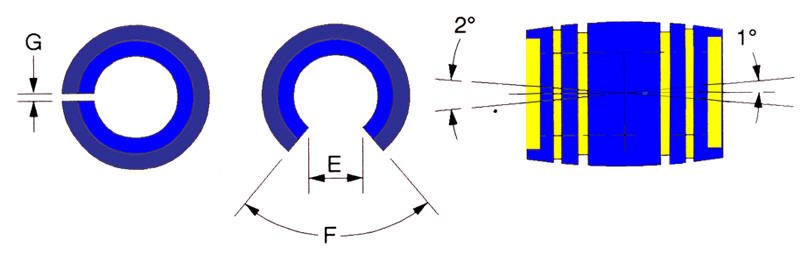

Open (LX) Slot Width |
Open (LX) Slot Angle |
ADJ (LA) Slot G |
LX5
|
5mm |
5mm |
0,038-0,065 |
12 |
22 |
D=12 W=1,1 |
12 |
N/A |
N/A |
2 |
LX8 |
8mm |
8mm |
0,038-0,065 |
16 |
25 |
D=14 W=1,1 |
16 |
N/A |
N/A |
2 |
LX12 |
12mm |
12mm |
0,038-0,065 |
22 |
32 |
D=20 W=1,3 |
22 |
7,6 |
78 |
2,5 |
LX16 |
16mm |
16mm |
0,038-0,065 |
26 |
36 |
D=22 W=1,6 |
26 |
10,8 |
78 |
3 |
LX20 |
20mm |
20mm |
0,047-0,089 |
32 |
45 |
D=28 W=1,6 |
32 |
10,8 |
60 |
3,5 |
LX25 |
25mm |
25mm |
0,047-0,089 |
40 |
58 |
D=40 W=1,85 |
40 |
13,2 |
60 |
4,5 |
LX30 |
30mm |
30mm |
0,047-0,089 |
47 |
68 |
D=48 W=1,85 |
47 |
14,2 |
50 |
5 |
LX40 |
40mm |
40mm |
0,049-0,089 |
62 |
80 |
D=56 W=2,15 |
62 |
18,7 |
50 |
7 |
LX50 |
50mm |
50mm |
0,049-0,089 |
75 |
100 |
D=72 W=2,65 |
75 |
23,6 |
50 |
8 |
LX60 |
60mm |
60mm |
0,049-0,089 |
90 |
125 |
D=95 W=3,2 |
90 |
29,6 |
54 |
10 |
LX80 |
80mm |
80mm |
0,122-0,173 |
120 |
165 |
D=125 W=4,2 |
120 |
38,4 |
54 |
14 |
