Minuteman Self Lubricating Linear Bearings
are self lubricating and because our
PTFE Composite
has no abrasive fillers, it can run on
RC60, soft 300 series stainless
and aluminum.

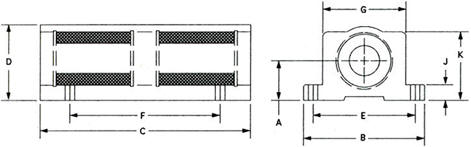

SELF LUBRICATING TWIN PILLOW BLOCK BEARINGS
Ordering Part Number Sample: 1/4" Closed Twin Pillow Block
For Self Aligning
Bearings add (SA) to Part Number
LM76 Linear Motion Bearings are
direct drop-in replacements for linear ball bearings
P/N |
Working Bore
A |
B |
C |
D |
E |
F |
G |
Bolt |
Hole |
JL
Min |
K |
Inches |
Tol. |
+/-.002 |
+/-.010 |
+/-.010 |
LPB-4TSL |
.2505 |
+.001 |
.437 |
1-5/8 |
2-1/2 |
13/16 |
1.312 |
2.000 |
1 |
#6 |
5/32 |
3/16 |
3/4 |
LPB-6TSL |
.3755 |
+.001 |
.500 |
1-3/4 |
2-3/4 |
15/16 |
1.437 |
2.250 |
1-1/8 |
#6 |
5/32 |
3/16 |
7/8 |
LPB-8TSL |
.5005 |
+.001 |
.687 |
2 |
3-1/2 |
1-1/4 |
1.688 |
2.500 |
1-3/8 |
#6 |
5/32 |
1/4 |
1-1/8 |
LPB-10TSL |
.6255 |
+.001 |
.875 |
2-1/2 |
4 |
1-5/8 |
2.125 |
3.000 |
1-3/4 |
#8 |
3/16 |
9/32 |
1-7/16 |
LPB12TSL |
.7505 |
+.001 |
.937 |
2-3/4 |
4-1/2 |
1-3/4 |
2.375 |
3.500 |
1-7/8 |
#8 |
3/16 |
5/16 |
1-9/16 |
LPB-16TSL |
1.0008 |
+.001 |
1.187 |
3-1/4 |
6 |
2-3/16 |
2.875 |
4.500 |
2-3/8 |
#10 |
7/32 |
3/8 |
1-15/16 |
LPB-20TSL |
1.2508 |
+.001 |
1.500 |
4 |
7/1/2 |
2-13/16 |
3.500 |
5.500 |
3 |
#10 |
7/32 |
7/16 |
2-1/2 |
LPB-24TSL |
1.5008 |
+.0015 |
1.750 |
4-3/4 |
9 |
3-1/4 |
4.125 |
6.500 |
3-1/2 |
1/4 |
9/32 |
1/2 |
2-7/8 |
LPB-32TSL |
2.0012 |
+.0015 |
2.125 |
6 |
10 |
4.063 |
5.250 |
8.250 |
4.500 |
3/8 |
13/32 |
5/8 |
3.625 |
