BLACK RACER
Ceramic Coated Linear Bearings require constant lubrication. High
system speeds or rapid oscillation applications
may perform better with SAE 30 weight oil.
Moderate to slow speeds typically use light
greases such as
lithium stearates. The only lubricants not
compatible with Ceramic Coated Bearings are
those that are silicon based. Silicon based
lubricants become gummy and can lead to bearing
seizure. |
ICATION

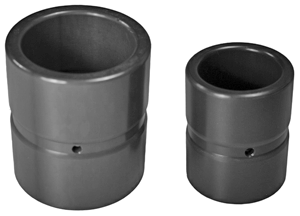

Black Racer Ceramic
Coated Linear Bearings
Excel in applications
that present: |
|
-
High acceleration and blazing system speeds - Over 120 g's
successful operation
-
Simultaneous linear, oscillating and
rotary motion in 1 bearing
-
Contamination
- glass, metal shavings, abrasive dust
-
High Loads are Present
- 10x's more than linear ball bearings
-
Water, Chemical Washdown/Submersion
-
Shock & Vibration
- Dampens Vibration to Shaft & System
-
Smooth, Quiet Linear Motion is Required
- Medical/Office
-
Linear & Rotary Motion Together are Required
-
Shaft Friendly Linear Motion is Required
- will not groove shafting
-
FDA Compliant when
used with a FDA Compliant Grease
|
|
|
|
 |
 |

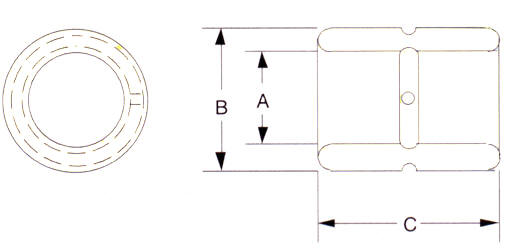

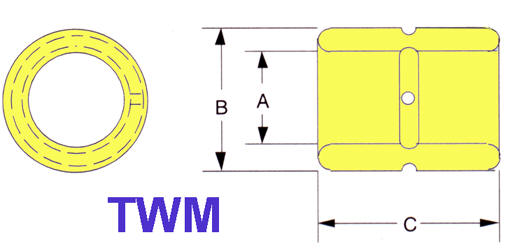

Part Number Example for
a Ceramic Coated Bearing
|
Part Number |
Working Bore
A |
Bore Tolerance |
Outside
Diameter
B |
Length
h14 Tolerance
C |
Max Shaft
Diameter |
Housing Bore
Diameter |
|
L6 TWM |
6 |
0,038-0,065 |
12 |
22 |
6 |
12 |
|
L8 TWM |
8 |
" |
15 |
24 |
8 |
15 |
|
L10 TWM |
10 |
" |
17 |
26 |
10 |
17 |
|
L12 TWM |
12 |
" |
19 |
28 |
12 |
19 |
|
L14 TWM |
14 |
" |
21 |
28 |
14 |
21 |
|
L16 TWM |
16 |
" |
24 |
30 |
16 |
24 |
|
L20 TWM |
20 |
0,047-0,074 |
28 |
30 |
20 |
28 |
|
L25 TWM |
25 |
" |
35 |
40 |
25 |
35 |
|
L30 TWM |
30 |
" |
40 |
50 |
30 |
40 |
|
L40 TWM |
40 |
0,049-0,089 |
52 |
60 |
40 |
52 |
|
L50 TWM |
50 |
" |
62 |
70 |
50 |
62 |
Use LM76
Precision Linear Shafting with Your Linear Bearings
