LM76 Screw Driven Linear Slides

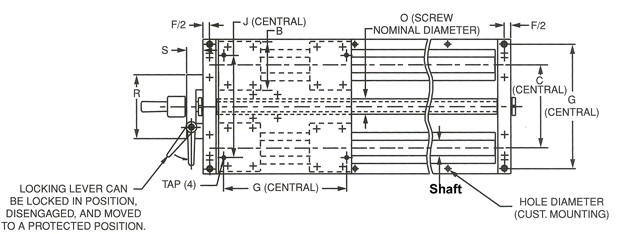

 M-2HCR/M-2HWL Screw Driven Linear Slides   Dimensions - Inch
Shaft Dia. W H A B C D E F G J K M N O P
.500 6.00 2.562 1.125 2.00 3.500 1.500 .375 .750 5.50 4.00 1.38 .375 1.45 .631 2.56
.625 7.00 2.750 1.125 2.500 4.000 1.620 .375 .750 6.31 4.00 1.38 .375 1.45 .631 2.56
.750 8.00 3.438 1.500 2.750 4.500 1.750 .500 1.00 7.12 6.00 1.50 .375 1.45 .631 2.56
1.000 9.00 3.938 1.750 3.250 5.500 2.120 .500 1.00 8.31 6.00 2.12 .625 1.76 1.000 2.56
1.250 11.00 5.125 2.125 4.00 6.500 2.500 .750 1.25 10.00 6.00 2.38 .625 1.76 1.000 2.56
1.500 13.00 5.750 2.500 4.750 8.000 3.000 .750 1.25 12.00 8.00 2.88 1.000 2.31 1.500 3.15
2.00 18.00 7.375 3.250 6.00 10.00 3.750 1.00 1.50 15.88 8.00 3.88 1.000 2.31 1.500 3.15

Q R S T U V X Y Z TAP HOLES
2.66 3.000 .875 1.312 3.885 4.00 4.00 2.655 4.855 10-24 .22
2.48 3.000 .875 1.312 3.885 4.00 4.00 2.655 4.855 1/4-20 .28
1.91 3.000 .875 1.312 3.885 4.00 4.00 2.655 4.855 1/4-20 .28
1.87 4.250 1.125 2.000 4.180 5.00 6.00 3.185 5.745 1/4-20 .28
.95 4.250 1.125 2.000 4.180 5.00 6.00 3.185 5.745 5/16-18 .34
2.54 6.500 1.500 3.000 5.455 7.00 10.00 4.310 7.460 5/16-18 .34
1.92 6.500 1.500 3.000 5.455 7.00 10.00 4.310 7.460 3/8-16 .41

M-2HCR
 Cast Aluminum counterbalanced hand crank

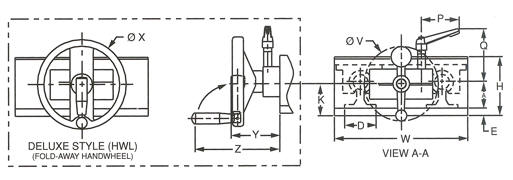

M2HWL
 Aluminum hand wheel with fold-away handle

LEAD CODES
AR? = .200 Right Hand
AL? = .200 Left Hand
BR? = .250 Right Hand
BL? = .250 Left Hand
CR? = .500 Right Hand
DR? = 1.00 Right Hand
DK? = 1.00 Left Hand
ER? = 1.875 Right Hand
Replace ? with 0 for standard lead - less
than .007" per foot accumulative

Replace ? 0 with 1 for select lead- less
than .003" per foot accumulative

 M-2HCR/M-2HWL  Standard Lengths - Inch
Slide
Shaft
Dia.
Screw Driven Slides with Hand Cranks & Locks
Available with Minuteman Self Lubricating Sleeve Bearings or Linear Ball Bearings

08
1/2"		 8 12 16   20 24 28   32 36 40   44 48 52   56 60 64   68 72 76   80 84 88   92 96
10
5/8"		 8 12 16   20 24 28   32 36 40   44 48 5   56 60 64   68 72 76   80 84 88   92 96
12
3/4"		   12       24   30   36   42   48   54   60   66   72   78   84   90   96
16
1"		   12   18   24   30   36   42   48   54   60   66   72   78   84   90   96
20
1 -1/4"		   12   18   24   30   36   42   48   54   60   66   72   78   84   90   96
24
1- 1/2"		     16 18   24     32   4     48     56   64     72     80   88     96
32
2"		           24     32   40     48     56   64     7     80   88     96

For engineering assistance call: 1-800-513-3163  International: 413-525-4166 ask for Mike Quinn
email: mquinn@LM76.com

P/N ORDERING EXAMPLE: M2HWL-16-036-AR1 - SST
P/N: M = Self Lube Bearings  ● HWL = Aluminum hand wheel with fold-away
handle  ● 16 = 1" Dia. Shafting ● 36 = 36" Overall Supported Shaft Length
●  ARI = .200" Right Hand Select Lead Ball Screw
● SST = 1" Dia. 303 Stainless JET Shafting

P/N ORDERING EXAMPLE: B2HCR-16-024-AR0
P/N: B = Linear Ball Bearings ● HCR = Cast Aluminum Counterbalanced Hand Crank
● 16 = 1" Dia. Shafting ● 24 =  24" Overall Supported Shaft Length
● ERO = 1.875" Right Hand Standard Lead Ball Screw
Special Designs




Your source for Multi-Axis
Slide Systems
Engineering Links
Engineering Data PDF
Linear Slide Examples
SELF LUBE vs. BALL BEARINGS
RC60 vs. JET Shafting

Special Designs a Specialty!

  • Roundway Slides
  • Profile Rail Slides

*Our unique polymatrix lead nut design contains no mechanical
parts ( ball, return tubes ect. ) which can catastrophically fail.

Materials:
Aluminum alloy: Top and Bottom Plates, rail supports, bearing pillow blocks
and coupling. Shafting is RC60 Hardened Steel or 303 ( SST ) Stainless with
Jet Finish, Rolled Ball Screw and Standard Ball Nut or *Polymatrix Nut.


Accessories:
NEMA Frame with Coupling
Protective Bellows
Limit Switches


3D Models


All sizes are available in washdown, FDA/USDA complaint stainless steel or stainless steel, chrome
plated combination.



MULTIPLE AXIS SYSTEMS


B2N Slides with
Drive Kits		 For Slides complete with drive kits

● NEMA MOUNT
● Coupling

 use this part numbering sequence:

B2N56-24-24-BRO  ( Ball Bearings )
M2N56-24-24-BRO ( Self Lube )

N56 = NEMA Mount Size

NOTE: All linear ball bearing "B" slides come standard with
RC60 Hardened, Class L Shafting
