Minuteman PTFE,
Self-Llubricating
Linear Bearings
PSI PV SFM Shaft Hardness Coefficient of Friction
5000 30,000 400 Rc60  440cSS  300SS .09 - .12

  • Self-Lubricating

  • Simultaneous linear, oscillating and rotary motion in 1 bearing

  • Contamination -  glass, metal shavings, abrasive dust

  • High Loads are Present - 10x's more than linear ball bearings

  • Water, Chemical Washdown/Submersion

  • Shock & Vibration - Dampens Vibration

  • Smooth, Quiet Linear Motion is Required - Medical/Office

  • Linear & Rotary Motion Together are Required

  • Shaft Friendly Linear Motion is Required - will not groove shafting

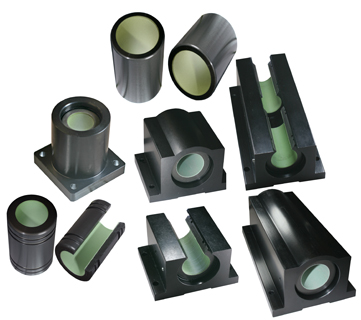

Open and Closed Bearings Inch Closed/Single
Pillow Blocks		 Inch Open/Single
Pillow Blocks
Inch Closed/Twin
Pillow Blocks		 Inch Open/Twin
Pillow Blocks
 		Single and Double
Length Flange Blocks
European Metric
and Open Closed		 Closed Single
Metric Pillow Blocks		 Open Single
Metric Pillow Blocks



Metric Closed Twin
Self-Lubricating Pillow Blocks

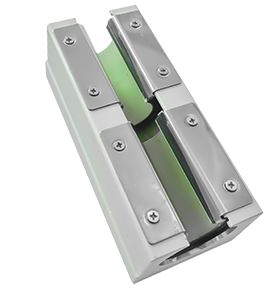

Metric Twin Open
Self-Lube Pillow Block

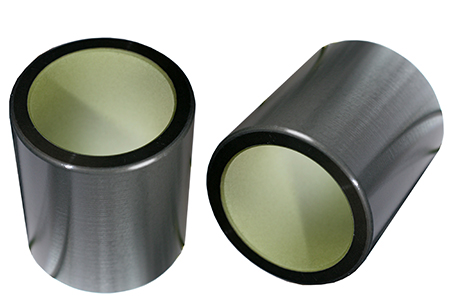

Self-Lube Thin Wall TWM Bearings


  Inch     Metric

PILLOW BLOCK HAND
LOCK OPTION

Closed and open pillow blocks are available
with a hand brake.

Part Number Example:
Closed: LPB1625-18SL Open: LXPB1625-18SL-HL

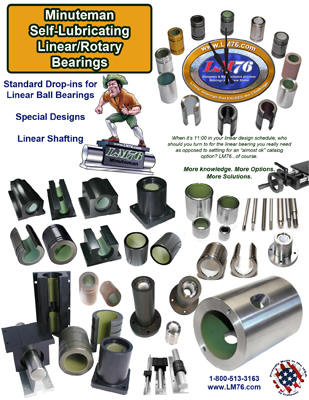

PRODUCT CATALOG PDF

Linear Ball Bearing vs.
Minuteman Self-Lube Linear Bearings

DESIGN DATA & CONSIDERATIONS

Bearing Design Data
 See LM76 Shafting for Optimum Performance
 See how tough Minuteman Linear Bearings really is in bad conditions
